106524
1/5
Preview
PREVIEW
PLID
Manufacturer Type Description
MANUTYPEDESC
Short Description
DESCSHORT
Long Description
DESCLONG
International product number
INTNO
Netto weight
NETTO_WEIGHT [kg]
ECLASS-13.0
ECLASS_13_0
ETIM-9.0
ETIM_9_0
Built-in diameter [EF000943]
EF000943 [mm]
1
2
3
4
5
6
7
8
266137
M22-LS
Mounting clamp, RMQ-Titan
Fixing adapter for RMQ-Titan buttons on LS-Titan position switches
4015082661373
0.00600
Adapter for command devices [AKF044019]
Adapter for command devices [EC001020]
22

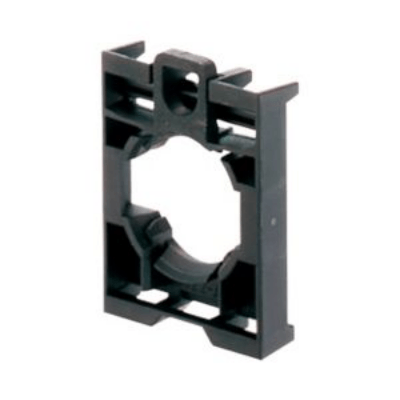

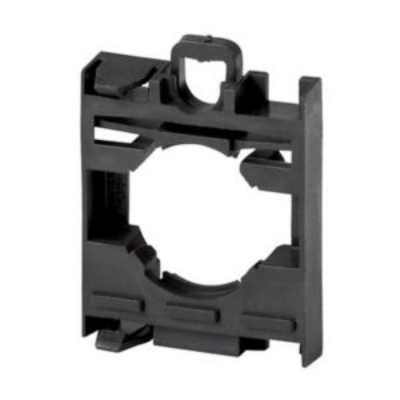

216374
M22-A
Mounting clamp
Mounting clamp, front mount for 3 contact/LED elements
4015082163747
0.00300
Adapter for command devices [AKF044019]
Adapter for command devices [EC001020]
22

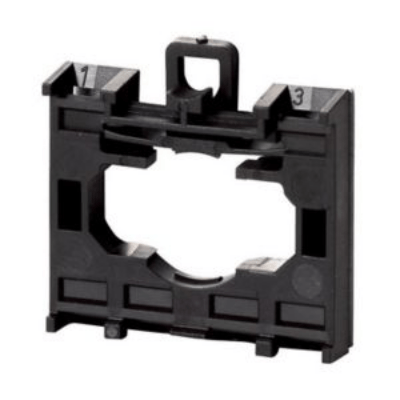

279437
M22-A4
Mounting clamp, 4 mounting locations
Mounting clamp with four installation points for contact and LED elements from the M22 RMQ range of products. The normal M22-A adapter has three points only. The fourth adapter is required, for example, for 4-actuator buttons and 4 joysticks, as well as for cases when four contacts need to be connected in series.
4015082794378
0.00500
Adapter for command devices [AKF044019]
Adapter for command devices [EC001020]
22

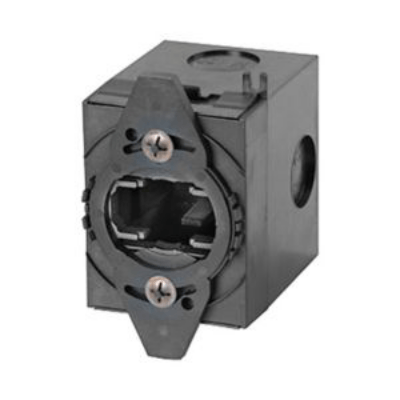

106524
M22-ADC4
Mounting clamp, with dust protection, 4-way
Accessories for the control circuit devices program
4015081063918
0.05500
Adapter for command devices [AKF044019]
Adapter for command devices [EC001020]
22
106523
M22-ADC
Mounting clamp, with dust protection
Accessories for the control circuit devices program
4015081063901
0.05500
Adapter for command devices [AKF044019]
Adapter for command devices [EC001020]
22
116016
M22-SWD-A4
Adapter, for function elements, 4-way
SmartWire -DT simply ingenious—for pilot devices: standard RMQ-Titan front elements can be connected simply with SmartWire-DT function elements, finished!
4015081157563
0.00500
Adapter for command devices [AKF044019]
Adapter for command devices [EC001020]
0
216375
M22-A-GVP
Mounting clamp, large packaging
Mounting clamp, front mount for 3 contact/LED elements, large packaging
4015082163754
0.00300
Adapter for command devices [AKF044019]
Adapter for command devices [EC001020]
22
216399
M22-ZA
Center component adapter
Center component adapter, RMQ system, for centering of actuator and indicator elements when using telescopic clip
4015082163990
0.00300
Adapter for command devices [AKF044019]
Adapter for command devices [EC001020]
22
Eaton's CAD - Adapter for command devices [EC001020]
| 订购编码 | 106524 |
| 上次修改 | 21.08.2025 08:48:31 |
| 单位 |
分类
